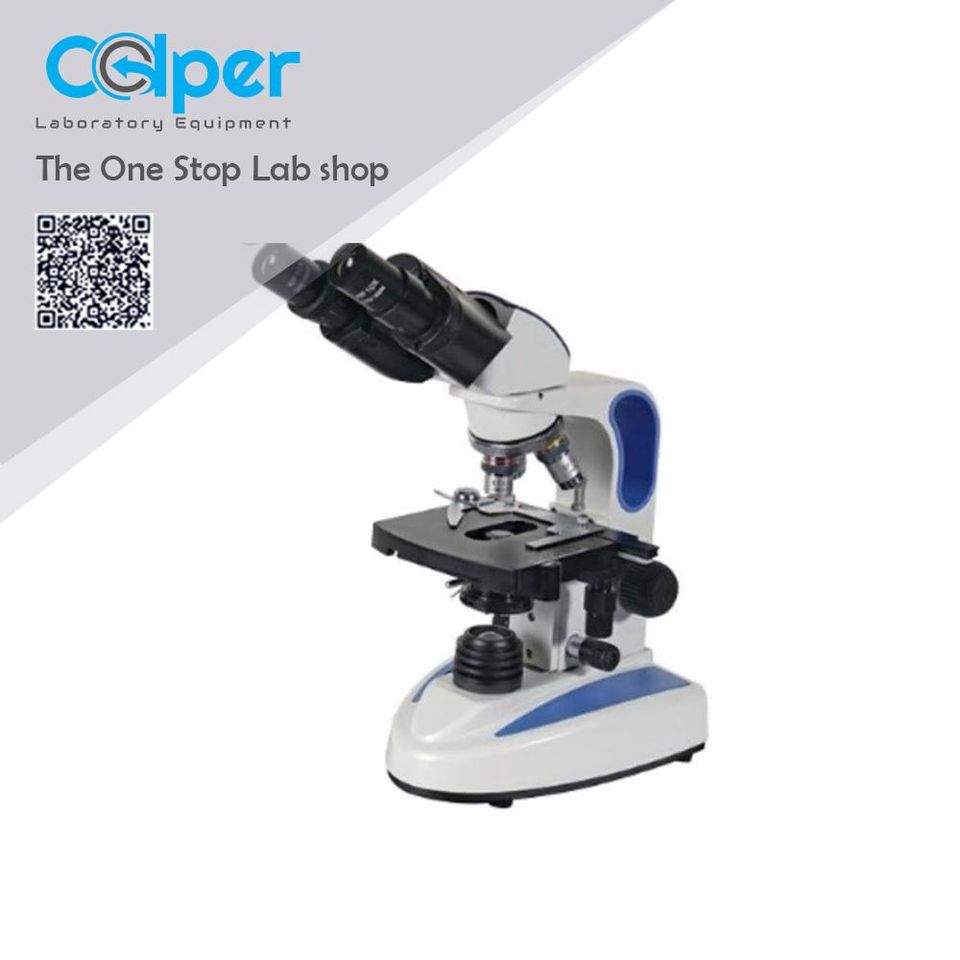

Binocular Microscope XSP-179C
Roll over image to zoom in
Rs 117,500.00
Specifications:
1) Viewing Head: Articulated binocular head, inclined at 30°(48MM-75MM) rotatable 360°
2) Eyepiece: WF10x
3) Objective: 4x,10x,40x(S),100x(S) oil
4) Stage: Double layer mechanical stage,135mm x 135mm Moving Range 70mmx50mm
5) Condenser: N.A 1.25 Abbe condenser with iris diaphragm and filter
6) Focusing: Separated coarse & fine focusing adjustment
7) Illumination: LED adjustable
Product Description
| Specification | Model | |||||
| XSP-179 | XSP-179A | XSP-179B | XSP-179C | XSP-179T | ||
| Viewing Head | Monocular head,inclined at 45 °， 360° rotatable | ● | ● | ● | ||
| Compensation free binocular head,inclined at30°(48mm- 75mm) | ● | |||||
| Compensation free binocular head,inclined at30°(48mm- 75mm) | ● | |||||
| Eyepiece | WF10×/18mm | ● | ● | ● | ● | ● |
| Objective | Achromatic objective:4×、10×、40×(s) | ● | ● | |||
| Achromatic objective:4×、10×、40×(s)、100×(s)Oil | ● | ● | ● | |||
| Stage | Plain stage with slide clips Stage Size：120mmX125mm | ● | ● | |||
| Double layer mechanical stage Stage Size：135mmX135mm Moving Range：70mm×50mm | ● | ● | ● | |||
| Condenser | 0.65 Condenser with disc diaphragm | ● | ||||
| 0.65 Condenser with iris diaphragm | ● | |||||
| N.A.1.25 Abbe condenser with iris diaphragm and filter holder | ● | ● | ● | |||
| Focusing | Separated coarse & fine focusing adjustment | ● | ● | ● | ● | ● |
| Light Source | LED,brightness adjustable | ● | ● | ● | ● | ● |
| Optional Accessory | Eyepiece：WF16×、WF20×、P16× Achromatic objective：20×（s）、60×(s) Reflector、Dual viewing head | |||||
