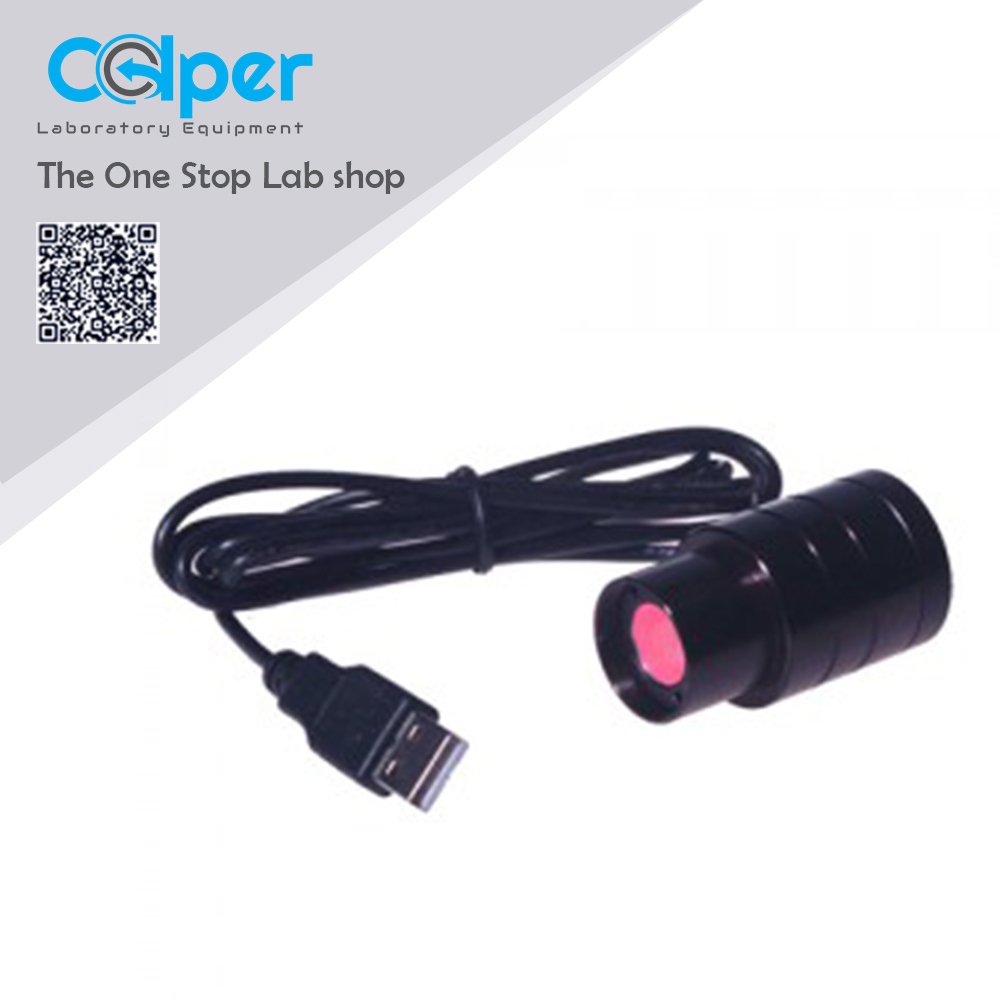

Microscope digital eye piece
Roll over image to zoom in
Rs 14,000.00
Specifications
Camera type :Color CMOS camera SXY-E10
Image sensor :1.3 megapixels
Pixel size :3.6μm×3.6μm
S/N Ratio :45dB
sensitivity:1.0V/lux-sec 550nm
Image-previewing rate :1280×1024 (1.3 megapixels):15 fps;
1024×768 (0.8 megapixels):15fps;
640×480 (0.3 megapixels):30fps
Operation system :Windows XP/Windows Vista/Windows 7
Camera interface :Standard C/CS mount
PC interface :USB2.0
Power :USB2.0 supplies
Size :36mm×36mm×85mm
Weight :120grammes
software CD
1.2 megapixel digital camera eyepiece is used with microscopes to display images on PC or TV for demonstration, analysis or application. To connect to PC or TV, use USB adapter.
| Item | Specifications |
| Camera type | Color CMOS camera SXY-E10 |
| Image sensor | 1.3 megapixels |
| Pixel size | 3.6μm×3.6μm |
| S/N Ratio | 45dB |
| sensitivity | 1.0V/lux-sec 550nm |
| Image-previewing rate | 1280×1024 (1.3 megapixels):15 fps; 1024×768 (0.8 megapixels):15fps; 640×480 (0.3 megapixels):30fps |
| Operation system | Windows XP/Windows Vista/Windows 7 |
| Camera interface | Standard C/CS mount |
| PC interface | USB2.0 |
| Power | USB2.0 supplies |
| Operating temp | -5°C to +60°C |
| Size | 36mm×36mm×85mm |
| Weight | 120grammes |
